Mk Acoustic

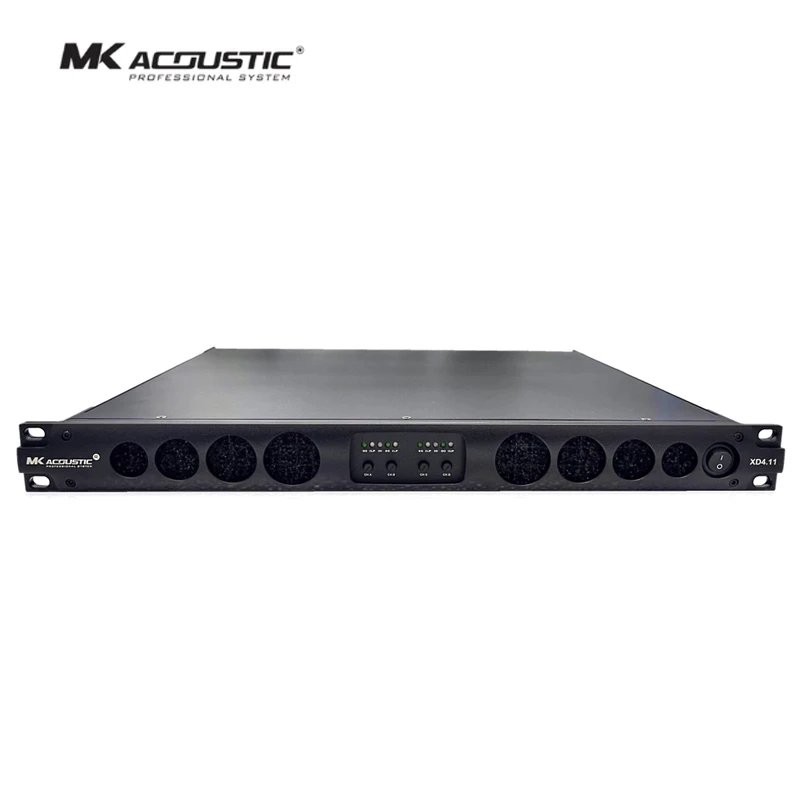

Model : XD 4.11
Thương hiệu : U.S.A
Xuất xứ : China
Thông số kỹ thuật
| Model Name | XD 4.11 |
| GS1 (EAN) CODE | 4.26032E+12 |
| System Type | 4-Channel Class D Amplifier |
| Output Power | 4 x 2700W @ 2Ohm |
| all channels driven | 4 x 1830W @ 4Ohm |
| 20Hz - 20 kHz, 0.1 % THD | 4 x 1100W @ 8Ohm |
| Output Power | 2 x 5000W @ 4Ohm |
| Bridge mode | 2 x 3660W @ 8Ohm |
| 2 x 3200W @16Ohm | |
| THD+N @ 8Ω 1kHz,1dB | ≤0.06% |
| Slew Rate | >50v/μs |
| Frequency Response | 10Hz -34kHz / ±0.3dB |
| @1Watt, 8Ohm | |
| Damping Factor | >3000 |
| (1kHz and below) | |
| Signal to Noise Ratio | >104dBA |
| 20Hz -20 kHz | |
| Channel Separation | >75dB |
| Crosstalk@1kHz | |
| Voltage Gain | 41,7dB (0,775V:113V) |
| Input Sensitivity | selectable 0.775V/1V/1.4V/2V |
| Input Impedance | 20k Ohm Balanced |
| 10k Ohm Unbalanced | |
| Front Control | Power switch, Gain control |
| Rear Control | Sensitivity Switch, |
| Mode Switch | |
| LED Indicators | Signal VU Meter |
| Protect, | |
| Parallel, | |
| Bridge | |
| Input Connectors | XLR Active balanced |
| pin1 gnd / pin 2+ / pin3- | |
| Output Connectors | 4 Neutrik NL4 Sockets |
| Cooling | Low Noise Continuously Variable |
| speed fan | |
| Protection | Full short circuit, Open circuit, |
| thermal, Ultrasonic, RF Protection. | |
| Stable Into reactive or | |
| Mismatched loads | |
| Load Protection | On/Off muting |
| DC fault power | |
| Supply shutdown | |
| Operating Voltage | 230V (+/- 10%), 50-60Hz |
| USA Version | |
| 110V (+/- 10%), 50-60Hz | |
| Fuse | T-25A |
| Dimensions (h/w/d) | 19“/1U 483W x 402D x 44H |
| Net weight | 8,2 kg |
